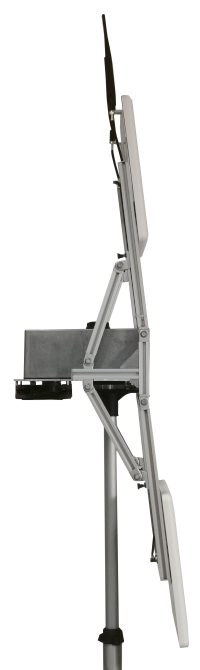

GRS-T200 Tracking Antenna

Long-range Ground Antenna for SL200

GRS T200 sGRS T200 plie s

GRS-T200 is a tracking antenna which expands the range of action of SL200 embedded modem. This is the ideal solution to provide long range and robust video and data links.

In UAV applications, GRS-T200 is located at the Ground side of the link and connects the Control Station to the Unmanned Aerial Vehicle.

GRS-T200 integrates the SL200 modem and benefits from its highly robust Software Defined Radio (SDR) algorithms and its extreme flexibility. It is equiped with 2 omnidirectional antennas and 2 directive antennas automatically pointed to increase the link budget.

Key features

          • Very Long Transmission Range
            > 65 km demonstrated over sea with SL200 and reduced Transmit Power (400 mW)
            Up to 80 km in Line of Sight (LOS)
          Robustness in Non-Line of Sight (NLOS) and mobile environments
        • Trancking in LOS
          Full automated and precise 360° tracking with or without embedded GPS
        • Flexibility
          Software Defined Radio (SDR) technology is used to adapt waveform to both LOS and NLOS conditions
          Adaptation to all Licensed/Unlicensed frequencies in the 70MHz - 6GHz range can be developed on demand
          • Compact and easy setup
            Foldable into a standard transport case
            Quick setup

sl100 op

SL200 Mobile Data Link Modem
GRS-T200 tracking antenna expands the range of action of SL200 embedded modem. SL200 is dedicated to bi-directional data and live video transmissions in various environments, from mobile indoor and urban missions to long-range flights.
